Walk In Electronic Environment Test Chamber For Climate Temperature And Humidity

Brand Name : GSKA

Model Number : HD-E705

Certification : CE

Place of Origin : Donggaun,china

MOQ : 1set

Price : negotiate

Payment Terms : L/C, T/T

Supply Ability : 150 Set / Sets per Month

Delivery Time : 15-20working days after received deposit

Packaging Details : Each set protected with resin fiber and PP film, then put into Strong wooden case

Warranty : 1 YEAR

HD-E705 : -20C TO +150C

accuracy : temp. ±1c, humidity ±2.5%rh

exterior walls : cold rolled stell plate with baking finish

Power : Electronic

humidity range : 40% TO 98% RH

interior walls : stainless steel 304

Contact Now

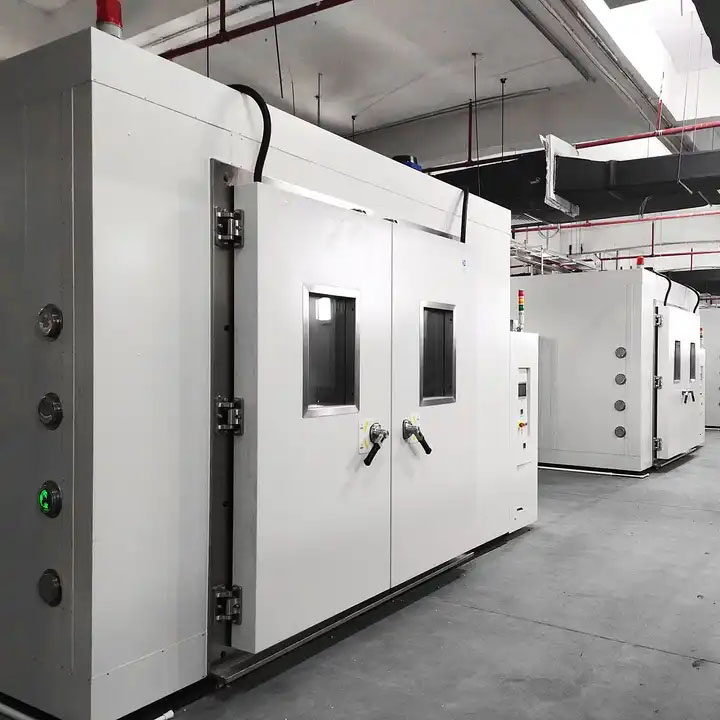

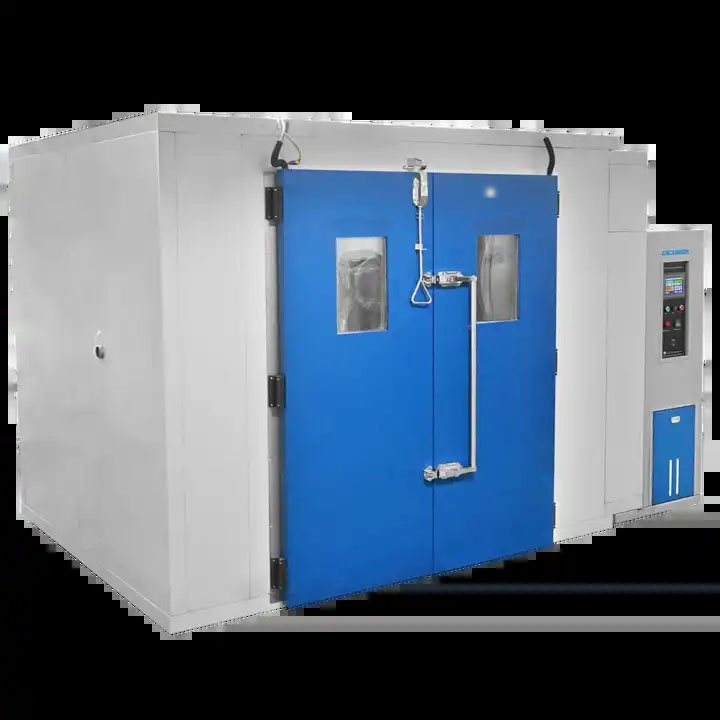

Walk-In Electronic Environment Test Box For Climate, Temperature And Humidity



Product Description:

The temperature and humidity controller of the incubator is suitable for the wet and hot test, high temperature test, low temperature test and high and low temperature gradual test of industrial products. It has the characteristics of wide range of limited temperature (humidity) and high precision of actual temperature (humidity). It can conduct walk-in laboratory, large studio and temperature and humidity test for a variety of components. Studio size can be customized by the client.


Thermal cyclic chamber:



chamber with internal air circulation, and all the heaters and cooling coil located behind/below the false sheet of the chamber and outside the working space  interior the conditioning with air circulation to maintain uniform temperaturinterior have provision for arranging stainless steel

insulation  is asbestos-free csc-free, with low thermal conductivity, polyrthene pu foam cooling system cascade type, refrigeration system with hermetically sealed refrigeration cycles with environment and ozone friendly and chloride free refrigeration door lockable front opening, with double door latch easy to open with silicon gasket for perfect sealing viewing window viewing interlock is sealed to avoid leakage and provided with heating provision to prevent condensation illumination inernallight on viewing windows with external control

Specifications:

1 TEMPERATURE RANGE -50C TO +100C
2 HUMIDITY RANGE 40% TO 98% RH
3 DIMENSION (INTERNAL) (W X D X H) 1500 X 1500 X 3000 MM
4 DIMENSION (EXTERNAL) (W X D X H) 2850 X 1700 X 3200 MM
5 RAMP

VARIABLE, TEMP. 0~5C / MIN & HUMIDITY 0~5%/MIN

IN AVERAGE, NO LOAD
6 ACCURACY TEMP. ±1C, HUMIDITY ±2.5%RH
7 INTERIOR WALLS STAINLESS STEEL 304
8 EXTERIOR WALLS COLD ROLLED STELL PLATE WITH BAKING FINISH

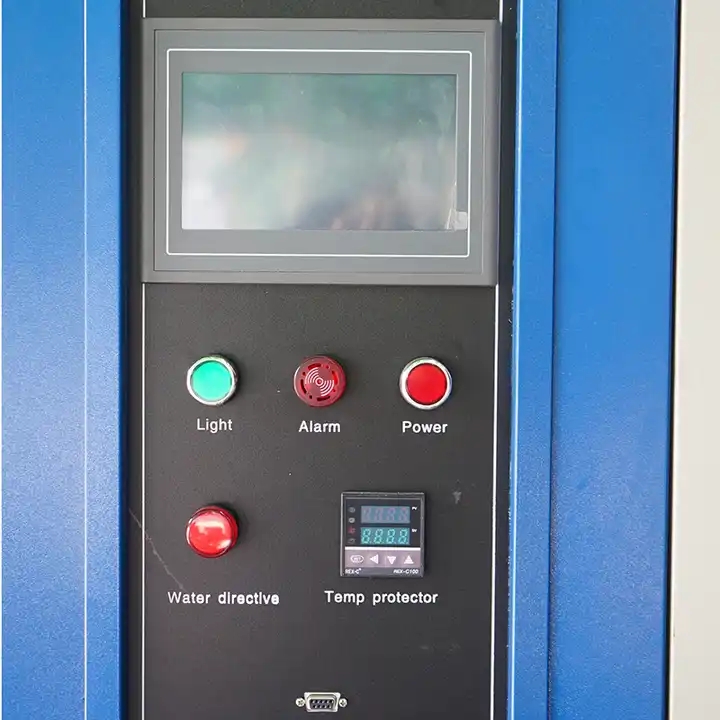

9 TEMPERATURE & HUMIDITY MEASUREMENT AND CONTROLLER

32 BIT CONTROL AND MONITORING SYSTEM.

INTERFACE FACILITY WITH RS232

PROGRAMMABLE TEMP. HUMID. CONTROLLER
10 VIEWING WINDOW MULTI PANE GLASS WINDOW SIZE
11 PORT HOLES 50 MM DIAMETER FOR WIRE ROUTING
12 POWER SUPPLY REQUIREMENT THREE PHASE, AC380 V ± 10 %, 50 HZ
13 SOUND PRESSURE LEVEL <72DB (A)
14 CONDENSER COOLING WATER COOLED



Walk In Electronic Environment Test Chamber For Climate Temperature And HumidityWalk In Electronic Environment Test Chamber For Climate Temperature And HumidityWalk In Electronic Environment Test Chamber For Climate Temperature And Humidity



FQA:



1. How do we guarantee the quality?



A: Before mass production, there is always a pre-production sample; inspection before shipment;



2. Why do you want to buy from us instead of from other suppliers?



A: We have established a complete R & D and production network in Dongguan, Shanghai and Qingdao. We are committed to innovation in



bioengineering, life sciences, the pharmaceutical industry and healthcare.



3. What services can we provide?



A: Accepted delivery mode :FOB, CFR, CIF, EXW, CIP, FCA, DDP;



Accepted payment currency: US dollar, Euro, Canadian dollar, RMB;



Payment methods accepted: T/T, L/C;
